Terminal Assemblies – AN665 Series

$34.00 – $133.06

Contact Us to Purchase

Special Order – Contact for Quote

AN665-155R
AN665-155L
AN665-202R
AN665-202L
AN665-247R
AN665-247L
AN665-430R
AN665-430L

SKU: WR-XXX-TRM-AN665-TERMINAL-SST-ASY-XXX Category:

Description

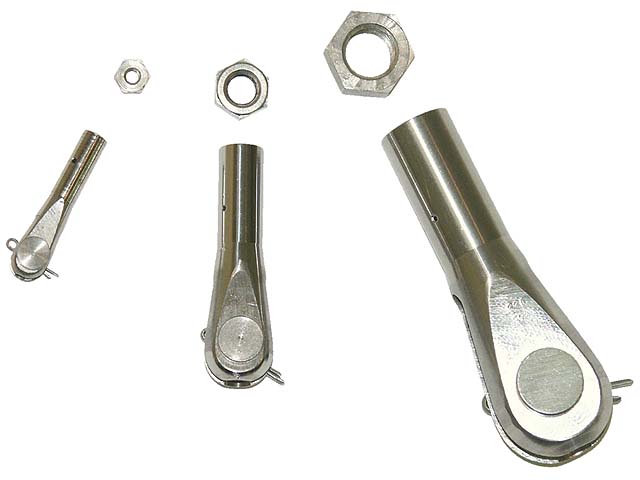

Steen carries a full line of Stainless Steel AN665 Terminal Hardware to fit our flying and brace wires. Like our wires, our terminals are made by Bruntons Aero Products Ltd., which has been manufacturing and refining flying wires and fittings since 1909. The quality they put into every piece is world-renowned and certified.

  • Terminal hardware is made from 6S80 Stainless Steel for the ultimate in corrosion resistance.
  • Wires are available in BSF or metric thread, for absolute authenticity for that antique restoration (Non-standard threads available by special order only – please call for price.)
  • All wires are tested to 100% of their designed load before leaving the factory.
  • Wires ordered with terminals are supplied assembled.
  • Every order includes a quality certification.
  • Terminals are supplied complete with clevis pins, split pins and locknuts.

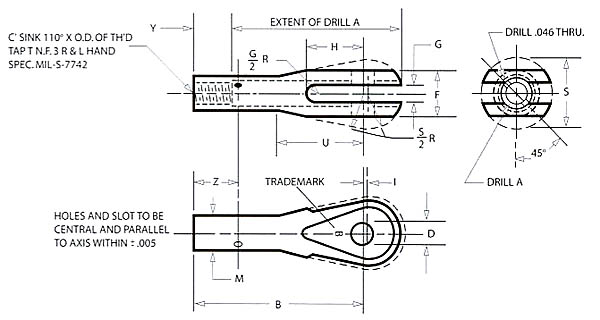

TERMINALS, THREADED CLEVIS TYPE
AN665 TERMINALS
Dash
No.		 Rated Tie
Rod
Strength
Min. (lbs.)		 Tap
T		 Drill
A		 B
±.015		 D Dia.
+.003
-.000		 F
+.010
-.000		 G
+.010
-.000		 H I
+.010
-.000		 M Dia.
+.010
-.000		 S
Dia.		 U Y
±.047		 Z Notes
10L
10R		 1,200 6-40 .147 1.313 .190 ** .250 .109 .375 .031 .250 .375 .625 .250 .313 –
21L
21R		 2,400 10-32 .199 1.531 .190 ** .313 .150 .469 .031 .281 .500 .719 .313 .375 –
34L
34R		 4,200 1/4-28 .261 1.813 .250 .438 .203 .625 .047 .375 .625 .875 .438 .500 –
46L
46R		 (a) 4,600 5/16-24 .323 1.875 .313 .500 .203 .656 .047 .438 .688 .938 .563 .625 –
61L
61R		 6,900 5/16-24 .323 2.000 .375 .563 .203 .844 .063 .453 .750 1.000 .563 .625 –
80L
80R		 10,000 3/8-24 .386 2.250 .375 .563 .266 .875 .063 .547 .875 1.125 .688 .750 –
80LA
80RA		 10,000 3/8-24 .386 2.250 .375 .625 .266 .875 .063 .547 .875 1.125 .688 .750 –
115L
115R		 13,700 7/16-20 .453 2.500 .438 .719 .344 1.000 .078 .625 1.063 1.250 .750 .813 –
155L
155R		 18,500 1/2-20 .516 2.813 .500 .813 .406 1.188 .078 .703 1.188 1.438 .875 .938 –
202L
202R		 24,000 9/16-18 .578 3.125 .563 .922 .453 1.375 .094 .796 1.375 1.625 1.000 1.063 Special Order
(Call for price)
247L
247R		 29,500 5/8-18 .640 3.375 .625 1.032 .516 1.500 .094 .875 1.500 1.750 1.125 1.188 Special Order
(Call for price)
430L
430R		 42,000 3/4-16 .766 4.125 .750 1.250 .656 1.938 .109 1.063 1.813 2.250 1.375 1.438 Special Order
(Call for price)
NOTES:** Tolerances: +.002 -.000 for .190 dia. only
(a) Special for AN675 rod with 4600 lb. rating.

  • Material is 6S80 Stainless Steel, satin finish. (MIL-T-5683)
  • Tolerances:
    Fractions ± 1/64
    Decimals ± .010
    Angles ± 1/2 degree
  • When specifying use dash numbers:
    Example:
    AN665-61L defines a 5/16-24 terminal, 6900 lb. rating, L.H. thread.



Additional information

AN665 Terminal Type

AN665-10L, AN665-10R, AN665-115L, AN665-115R, AN665-21L, AN665-21R, AN665-34L, AN665-34R, AN665-46L, AN665-46R, AN665-61L, AN665-61R, AN665-80LA, AN665-80RA
